Description

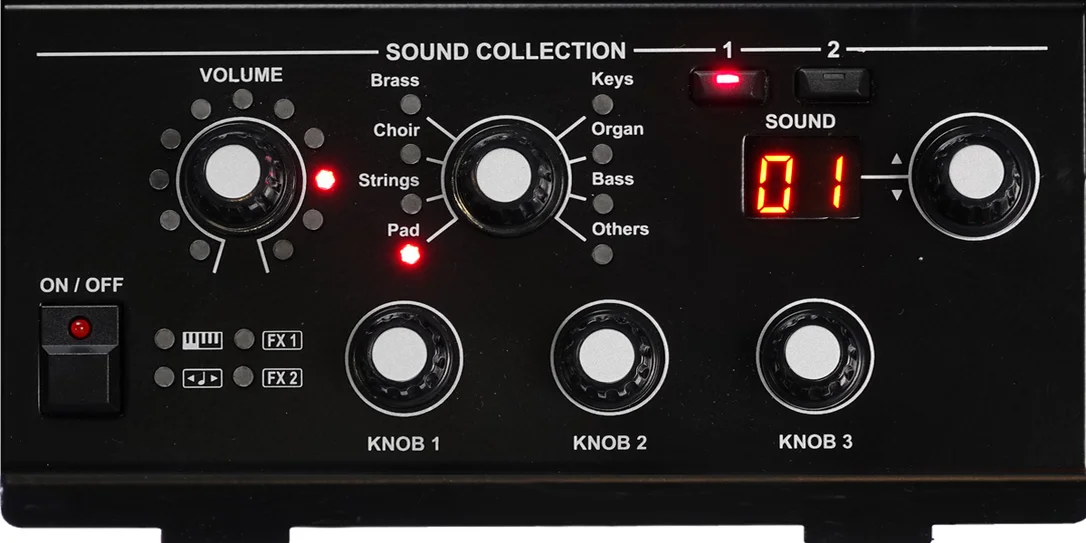

The SOUND COLLECTION module includes a wide array of different sounds, reproducing the most commonly used instruments that all musicians need.Thanks to the Viscount HDS (High Definition Sampling) technology, each instrument has been accurately sampled with several different dynamics, inorder to better recreate the variety in dynamics and tone of the original instruments.The sampled instruments are therefore realistic and rich in definition.These sounds are divided into 8 groups: Pad, Strings, Choir, Brass, Keys, Organ, Bass and Others.The module is comprised of two different parts. Each can be recalled with the respective selection button. Panel controls are further expanded by many other parameters that can be modified through the EDIT PROGRAM menu (see Sound Collection section in the User’s Manual) and through the Legend ’70s Editor applicationSound category selectorUse this control to select the sound category, that can then be recalled through the knob described. PositionDescriptionPadSynth PadStringsAcoustic and synthesized bowed instrumentsChoirChoirsBrassAcoustic or synthesized brass instruments.KeysAcoustic and electronic pianos, synths, accordions.OrganElectric, electromechanic and pipe organs.BassAcoustic, electric and synthesized bassOthersVarious kinds of instruments.Part selection buttonsAs described in the introduction, this module is comprised of two different parts. To select a part, so as to access its main parameters through the panel controls, press button [1] or [2]. When a part is selected, the controls’ led lights and the adjustable parameters are set according to the currently selected part.Sound selectorUse this control to recall a sound belonging to the sound group (selected by the knob described). The display shows the digit corresponding to the selected sound while the name of the soundappears on the main panel display.Sound displayDisplays the sound selected through the knob described.Generation parameter knobThese three knobs control three sound generation parameters. The parameter controlled by each knobdepends on the currently selected sound. For further information on the adjustable parameters see the user’s manual.
